Magnetic Field Distribution Analyzer

Features

1.The magnetic flux density of magnet is measured and evaluated by the probe after magnetization.
2.The measuring data is output as CSV form so that it can be taken into the general-purpose software.
3. Two types of analysis as cylinder and plane are available.

Application

This equipment is designed to evaluate the distribution of magnetic field on the surface of ring shaped magnets (mainly for the rotor and stator of motor)by gauss meter. The analysis data such as angle and area for each pole as well as maximum, minimum and average value can be displayed as numerical value. And also 2-D graph with X axis for angle(Deg)and Y axis for magnetic flux density(Tesla)and 3-D graph with X axis for the position to angle(Deg), Y axis for the position to rotation axis and Z axis for magnetic flux density(Tesla)can be displayed.

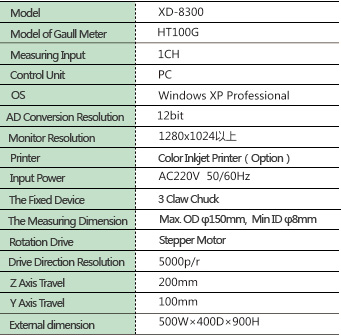

Specification
