Features

1.The design for the electric circuit inside of magnetizer is totally renewed, and pursues super low impedance.
2.Make use of the new electric circuit to achieve lower voltage with larger current. It is very effective to magnetize for smaller motor related to IT industry and high HC magnets.
3.Discharging time is short so that heat generation can be moderated and long life of magnetizing yokes are expected.

Application

CD,DVD,HDD spindle motors, smaller motors such as stepper motors witch require fine coiling with only 1 to 2 number of turns per one pole and rather larger current when magnetization.

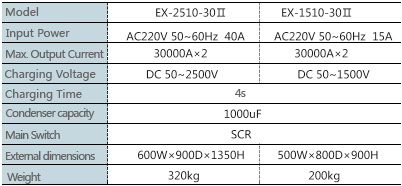

Specification
